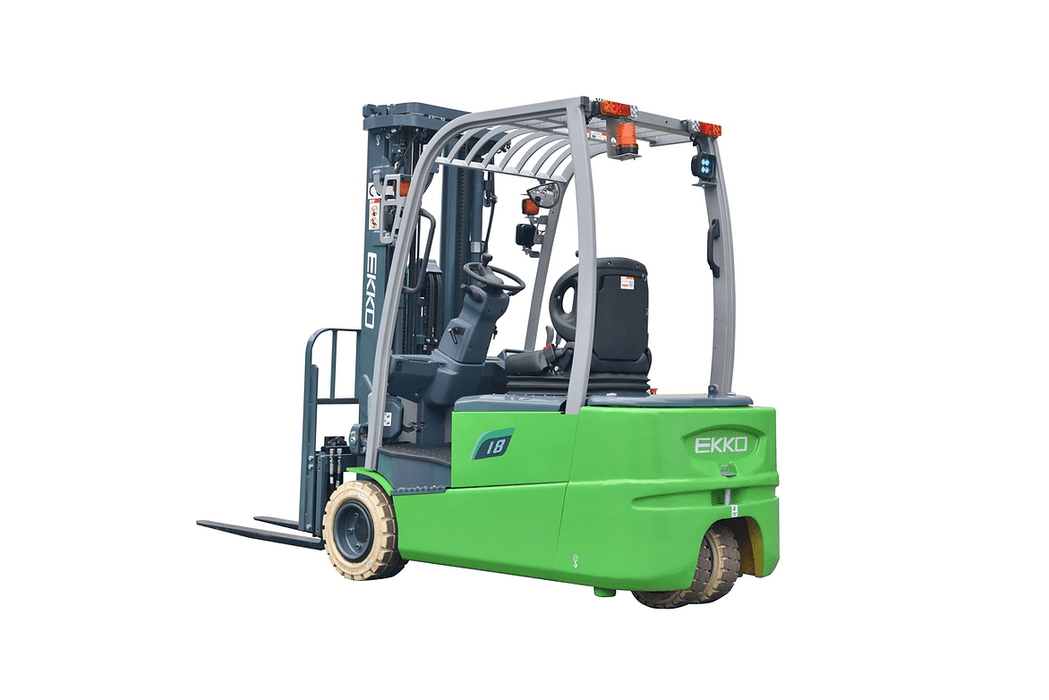

Wheel Lithium Forklift | No LP Tank | EK18AT-185Li
Contact Us for Expedited Shipping
Description
Specifications
|
Power unit |
|
Lithium |
|
Operation Type |
|
Rider |
|
Loading capacity |
(LBS) |
4000 |
|
Load center |
(Inch) |
24 |
|
Wheelbase |
(Inch) |
53.5 |
|
Service weight with battery |
LBS |
7341 |
|
Wheels type |
|
Solid Pneumatic |
|
Tire size front |
|
200/50-10 |
|
Tire size rear |
|
140x55-9 |
|
Wheels |
|
2×/2 |
|
Tread, front |
(Inch) |
35.8 |
|
Tread, back |
(Inch) |
7.1 |
|
Mast Tilt |
(°) |
3/6 |
|
Lowered mast height |
(Inch) |
83.1 |
|
Free lift height |
(Inch) |
43.7 |
|
Lift height |
(Inch) |
185 |
|
Height of overhead guard (cabin) |
(Inch) |
77.6 |
|
Overall length |
(Inch) |
116.9 |
|
Overall width |
(Inch) |
41.5 |
|
Ground clearance under mast |
(Inch) |
4.3 |
|
Min.Ground clearance |
(Inch) |
3.7 |
|
Min.Turning radius |
(Inch) |
61 |
|
Travel speed,laden/unladen |
(mph) |
10/10 |
|
Lifting speed, with/without load |
(in/s) |
13.8/20.5 |
|
Climbing ability, with load |
(%) |
20 |
|
Service brake |
|
Hydraulic |
|
Drive motor, |
(kw) |
4.75 |
|
Lift motor |
(kw) |
10 |
|
Battery voltage/rated capacity |
(V/Ah) |
48V/202 lithium |
|
Type of drive control |
|
AC |
