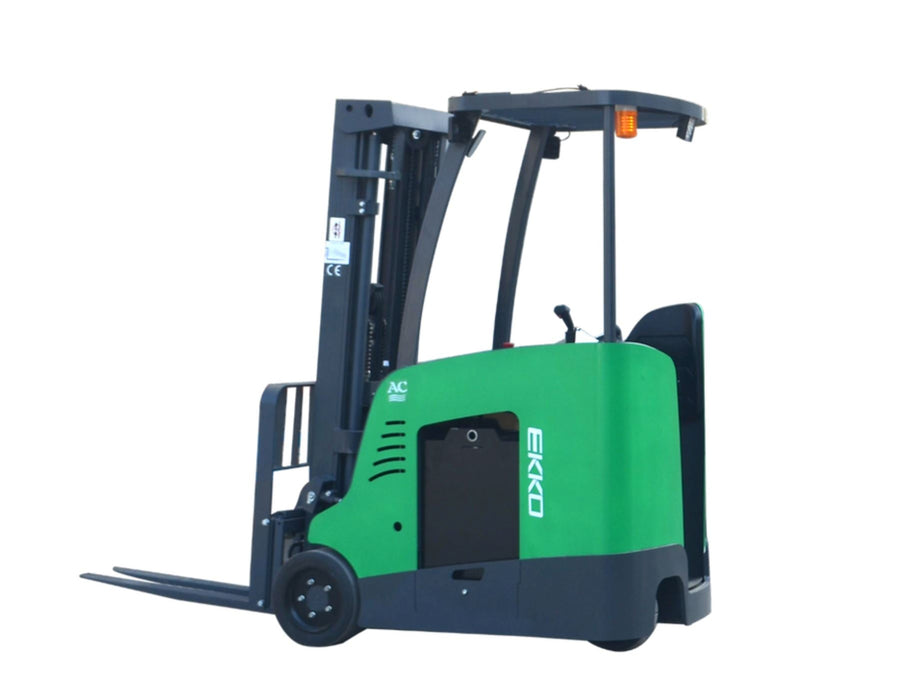

Stand-up Rider Forklift, 3" Free Lift EPS / 4000 lb Capacity | EK18RF-LI

by EKKO
Sold out
Original price $35,999.00 - Original price $35,999.00
Original price
$35,999.00
$35,999.00 - $35,999.00
Current price $35,999.00
No reviews

3 YEAR WARRANTY | AUTHORIZED ONLINE DEALER

The EKKO EK18RF-LI Stand-up Rider Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 4000 lb
  • Raised Height 216" (18ft)
  • Side Shift
  • Adjustable Forks 9.4-35.6"
  • Fork Length 45.3“
  • Hydraulic Steering
  • Curtis Instrument Controller
  • German AC Drive Motor
  • Battery 48V/350Ah Lithium
  • Solid Cushion Load Tires
  • Polyeurathane Drive Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 440V three phase
  • 3 Year Limited Warranty

Load centre

c (Inch)

24

Axle centre to fork face

x (Inch)

11.5

Wheelbase

y (Inch)

48.8

Service weight with battery

LBS

7940

Wheels type



Solid wheel

Driving wheel size

Φ×w(Inch)

16×7-10.5(15.98*7.01*10.51)

Bearing wheel size

Φ×w(Inch)

13.5×5.2

Wheels, number front/rear



1×/2

Track width

b10 (Inch)

35.04

Mast/fork carriage tilt, fwd/bwd

a/b (°)

3/5

Lowered mast height

h1 (Inch)

91.77

Free lift height

h2 (Inch)

61.34

Lift height

h3 (Inch)

216.54

Extended mast height

h4 (Inch)

248.43

Height of overhead guard (cabin)

h6 (Inch)

90.08

Height of seat/stand-on platform

h7 (Inch)

9.06

Overall length

l1 (Inch)

117.78

Length to fork face

l2 (Inch)

72.52

Overall width

b1/ b2 (mm)

42.52/42.13

Fork dimensions

s/e/l (Inch)

1.58/4.72/45.28

Width of forks

b3 (Inch)

36.22

Ground clearance under mast

m1 (Inch)

2.95

Min.Ground clearance

m2 (Inch)

3.86

Aisle width with pallet 1000 x 1200 across forks

Ast (Inch)

117.24

Aisle width with pallet 800 x 1200 along forks

Ast (Inch)

125.12

Min.Turning radius

Wa (Inch)

58.5

Travel speed,laden/unladen

(km/h)

12/13

Lifting speed, with/without load

(mm/s)

250/400

Lowering speed, with/without

(mm/s)

240/258

Climbing ability, with/without

(%)

6/10

Service brake



Hydraulic

Drive motor, 60-minute rating

(kW)

6

Lift motor rating at S3 15%

(kW)

7.7

Battery according to DIN 43531/35/36 A,B,C,no



no

Battery voltage/rated capacity

(V/Ah)

48V/350Ah Lithium

Power consumption VDI

(mm)

38*18.1*29.53

Type of drive control



AC

Noise level at operator‘s ear

(dB(A))

≤70

steering type



Hydraulic steering
