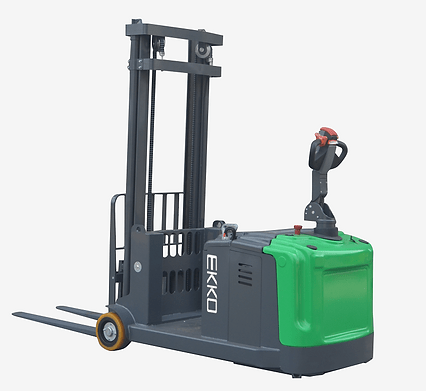

Lithium Powered Counterbalanced Walkie Stacker | EK14-130Li
Contact Us for Expedited Shipping

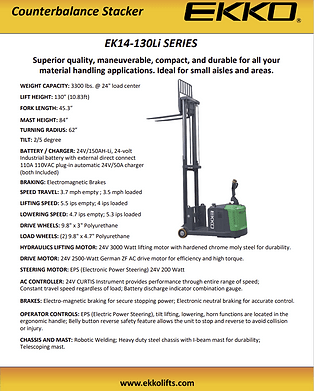

Description

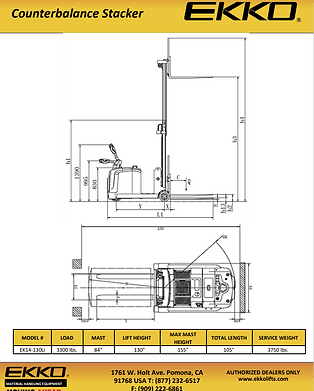

Specifications
|
Drive type |
|
Electric |
|
Type of operation |
|
Walike type |
|
Load Capacity |
Q (LBS) |
3300 |
|
Load Centre |
c (Inch) |
24 |
|
Distance between fork backrest and front wheel |
x (Inch) |
6 |
|
Wheelbase |
y (Inch) |
47 |
|
Service Weight（with battery） |
LBS |
3750 |
|
Tire material |
|
PU |
|
Driving wheel size |
Φ×w(Inch) |
Φ9.8×3.1 |
|
Front wheel size |
Φ×w(Inch) |
Φ9.84×4.71 |
|
No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel |
|
2/1X |
|
Load capacity |
|
Power |
|
Operator type |
|
Stand |
|
Mast/fork carriage tilt, forward/backward |
α/β (°) |
2/5 |
|
Lowered mast height |
h1 (Inch) |
84 |
|
Free lift height |
h2 (Inch) |
4 |
|
Lift height |
h3 (Inch) |
130 |
|
Extended mast height |
h4 (Inch) |
155 |
|
Height of seat/stand-on platform |
h7 (mm) |
5 |
|
Fork carriage width |
(in) |
3.5 |
|
Overall Length |
l1 (Inch) |
105 |
|
The max driving speed laden/unladen |
(in/h) |
16850/204724 |
|
Overall Width |
b1 (Inch) |
39 |
|
Fork Size |
s/e/l (Inch) |
1.4/4/37 |
|
Fork Width |
b5 (Inch) |
8.7-28 |
|
Ground clearance under mast |
m1 (Inch) |
2.4 |
|
Steering Motor |
|
24V/0.2kw |
|
Aisle width for pallets 1000*1200 crossways |
Ast (Inch) |
119 |
|
Aisle width for pallets 800*1200 lengthways |
Ast (Inch) |
123 |
|
Turing Radius |
Wa (Inch) |
62 |
|
Steering Motor |
|
24V/0.2kw |
|
Lifting Speed load/unload |
(in/s) |
4/5.5 |
|
Lowered Speed load/unload |
(in/s) |
5.3/4.7 |
|
Maximum gradeability load/unload |
(%) |
6/10 |
|
Charger |
|
24V/50A |
|
Drive Motor |
(kW) |
2.5 |
|
Lift Motor |
(kW) |
3.0 |
|
Battery voltage/rate capacity |
(V/Ah) |
24/150AH-Li |
