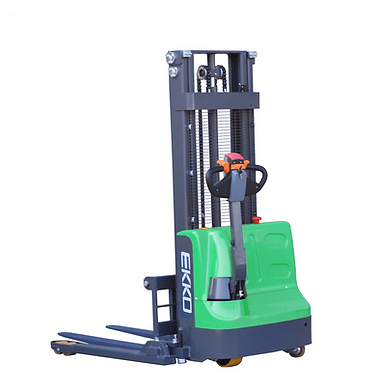

Lithium Iron Phosphate Straddle Stacker 72"Mast, 98" Lift | EB12E-98Li
by EKKO
Original price
$5,399.00
-
Original price
$5,399.00
Original price
$5,399.00
$5,399.00
-
$5,399.00
Current price
$5,399.00
Contact Us for Expedited Shipping
Description

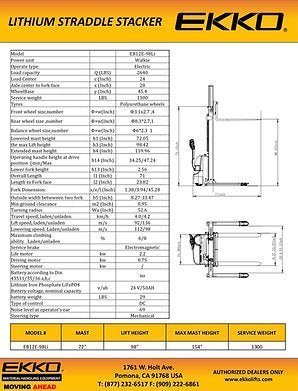

Specifications
| Power unit | Walkie | |
| Operate type | Electric | |
| Load capacity | Q (LBS) | 2640 |
| Load Center | c (Inch) | 24 |
| Axle center to fork face | x (Inch) | 28 |
| Wheel Base | y (Inch) | 45.4 |
| Service weight | LBS | 1300 |
| Tyres | Polyurethane wheels | |
| Front wheel size,number | Φ×w(Inch) | Φ3.1x2.7 ,4 |
| Rear wheel size ,number | Φ×w(Inch) | Φ8.3*2.7,1 |
| Balance wheel size,number | Φ×w(Inch) | Φ6*2.3 1 |
| Lowered mast height | h1 (Inch) | 72.05 |
| the max Lift height | h3 (Inch) | 98.42 |
| Extended mast height | h4 (Inch) | 119.96 |
| Operating handle height at drive position (min/Max | h14 (Inch) | 34.25/47.24 |
| Lower fork height | h13 (Inch) | 2.56 |
| Overall Length | l1 (Inch) | 71 |
| Length to Fork face | l2 (Inch) | 23.82 |
| Fork Dimension: | s/e/l (Inch) | 1.38/3.94/45.28 |
| Outside width betwween two fork | b5 (Inch) | 8.27-33.47 |
| Min ground clearance | m2 (Inch) | 0.95 |
| Turning radius | Wa (Inch) | 52.6 |
| Travel speed, laden/unladen | km/h | 4.0/4.2 |
| Lift speed, laden/unladen | m/s | 92/136 |
| Lowering speed. Laden/unladen | m/s | 112/98 |
| Maximum climbing ability Laden/unladen | % | 6/8 |
| Service brake | Electromagnetic | |
| Life motor | kw | 2.2 |
| Driving motor | kw | 0.75 |
| Steering motor | kw | / |
| Battery according to Din 43531/35/36 a,b,c | no | |
| Battery voltage, nominal capacity | v/ah | 24 V/50AH |
| battery weight | LBS | 29 |
| Type of control | DC | |
| Noise level at operator's ear | 69 | |
| Steering type | Mechanical |
