Electric Pallet Jack 3300 lb Capacity W/ PinPad | No LP Tank | EP15JLi
by EKKO
Original price
$2,599.00
-
Original price
$2,599.00
Original price
$2,599.00
$2,599.00
-
$2,599.00
Current price
$2,599.00
Contact Us for Expedited Shipping
Description
Specifications
| Drive type | Electric | |
| Manner of operation | Walkie | |
| Load Capacity | Q (LBS) | 3300 |

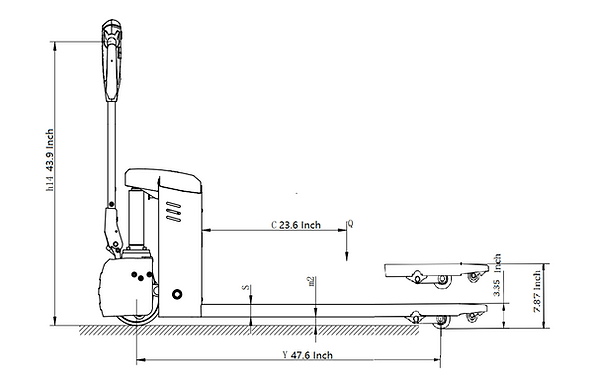

| Load Centre | c (Inch) | 23.6 |

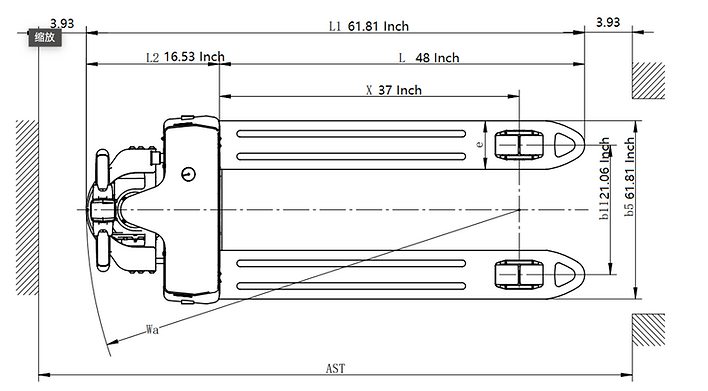

| Axle centre to fork face | x (Inch) | 37 |
| Wheel Base | y (Inch) | 47.6 |
| Tire material | PU | |
| Driving wheel size | Φ×w(Inch) | Φ8.26×2.75 |
| Bearing wheel size | Φ×w(Inch) | Φ3.15×2.36 |
| Qty of wheel，Front/Rear（x=driving wheel） | 1x/2 | |
| Tread | b11 (Inch) | 21.06 |
| Lifting Height | h3 (Inch) | 7.8 |
| The height of handle in the operation position | h14 (Inch) | 30.5/43.9 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall Length | l1 (Inch) | 61.81 |
| Body Length | l2 (Inch) | 16.53 |
| Overall Width | b1/ b2 (Inch) | 27 |
| Fork Size | s/e/l (Inch) | 1.97/5.9/45 |
| Fork Width | b5 (Inch) |
27 |
| Min.Ground clearance | m2 (Inch) | 1.38 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 69.7 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 71.6 |
| Turing Radius | Wa (Inch) | 53.7 |
| Driving Speed，load/unload | (km/h) | 4.2/4.5 |
| Maximum gradeability load/unload | (%) | 5/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.75 |
| Lift Motor | (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage rate capacity | (V/Ah) | 24/30 |
| Battery Weight（±5%） | LBS | 21.1 |
| Type of drive control | DC | |
| Noise level | (dB(A)) | ≤70 |
| Service Weight（with battery） | LBS | 308 |
