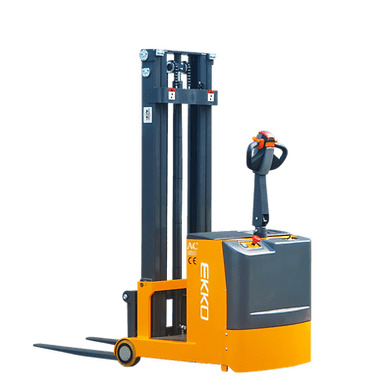

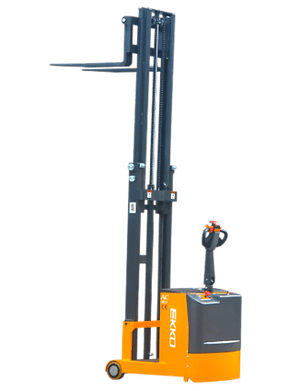

Counterbalance Walkie Stacker 1550lbs. Cap., 118" Height | EK07S
Contact Us for Expedited Shipping
Description
Specifications
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lbs) |
1550 |
|
Load center distance |
(in) |
20 |
|
Lifting height |
(in) |
118 |
|
Lowered mast height |
(in) |
81.1 |
|
Overall length |
(in) |
84.7 |
|
Overall width |
(in) |
34.5 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/2.9/42 |
|
Fork adjust width |
(in) |
8.3-25.2 |
|
Turning radius |
(in) |
51 |
|
Internal Charger |
|
24V/20A |
|
Driving Motor |
|
AC 24V/0.75kw |
|
Lifting Motor |
|
24V/1.5kw |
|
Battery voltage |
|
24V/120AH |
|
Service Weight |
(lbs) |
2090 |
